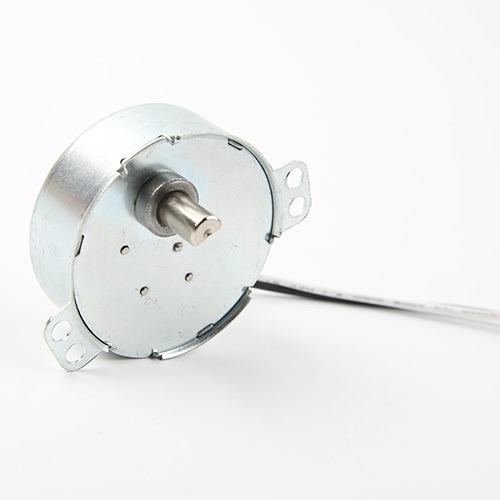

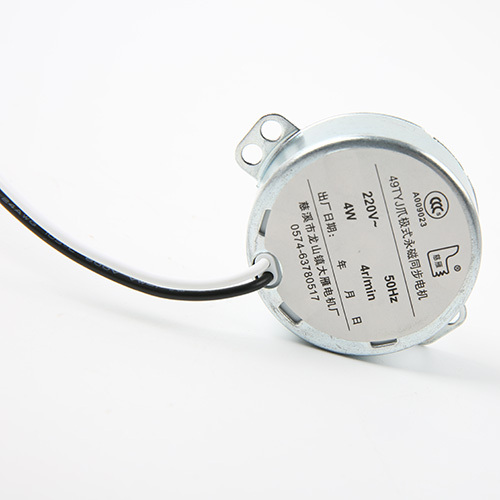

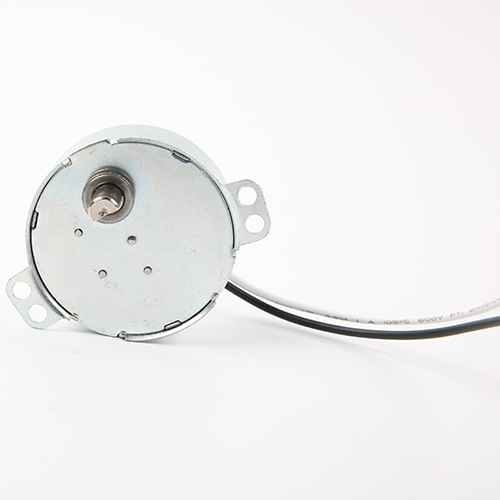

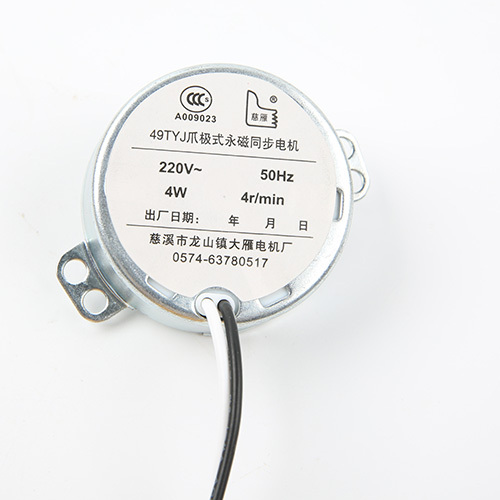

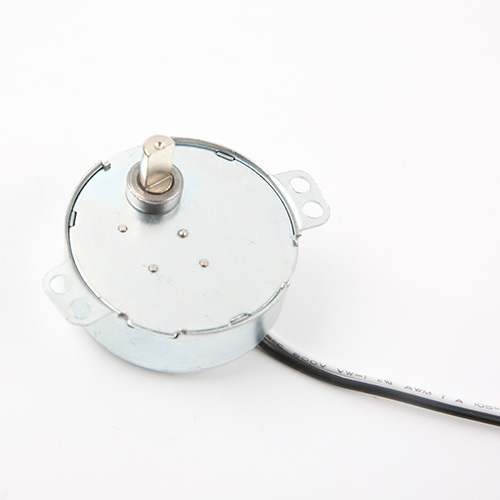

PRODUCT PARAMETERS
| Category | Synchronous Motor | DC Gear Motor | Gearbox | |||||||||||
| Model | 49TYJ-B | 49TYJ-H | 43TYD | 49T500 | 49T0401 | 49TYJ-DC | 49TYJ-AC/DC | Y40 | ||||||
| Body Diameter（mm） | 49 | 49 | 43 | 48.5 | 48.5 | 47.5 | 49 | 40 | ||||||
| Body Heigth（mm） | 19 | 24.5 | 18.5 | 18.8 | 46.8 | 31 | 19 | 15.9 | ||||||
| Rated Voltage | AC 12-36V, 100-240V |
AC 12-36V, 100-240V |
AC 24/110/ 220V | AC 24/110/ 220V | AC 24/110/ 220V | DC 3-24V | DC 12/24V | / | ||||||
| Rated Power (W) | 4 | 4 | 10 | 4 | 4 | 4 | 4 | / | ||||||
| Rated Frequency (Hz) | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | / | / | / | ||||||
| Rotation Speed at 50Hz (rpm) | 2.5 | 3.5 | 4.5 | 2.5 | 3.5 | 4.5 | 500 | 500 | 0.22 | 2.5-200 | 2.5 | 3.5 | 4.5 | Reduction Ratio 318:1；400:1 |
| Output Torque (kgf.cm) | ≥8 | ≥7 | ≥5 | ≥8 | ≥7 | ≥5 | ≥0.2 | ≥0.05 | ≥100 | ≥10-0.2 | ≥8 | ≥7 | ≥5 | / |
| Rotation Direction | CW/CCW | CW/CCW | Reversible | Directional | Directional | according to DC +/- | CW/CCW | same as input direction | ||||||
| Shaft Position | Off the Center | Off the Center | In the Center | In the Center | In the Center | Off the Center | Off the Center | Off the Center | ||||||
| Dielectrical Strength (VAc/s) | 1800 | 1800 | 1800 | 1800 | 1800 | / | 1800 | / | ||||||
| Insulation Class | E | E | E | E | E | / | E | / | ||||||
| Temp. Rising（K） | ≤65 | ≤65 | ≤80 | ≤65 | ≤65 | / | ≤65 | / | ||||||
| Noise（dB） | ≤40 | ≤40 | ≤40 | ≤40 | ≤40 | ≤40 | ≤40 | / | ||||||

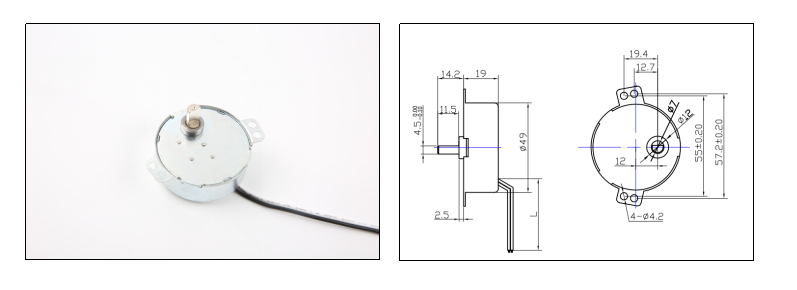

| Remark | 1. Shaft dimension and wire length customized according to your requirement; 2. Install dimension refer to the drawing, contact us if you have other request e.g output speed and torque. |
|||||||||||||
At rated frequency, the rotation speed is not affected by voltage. If overload or stall when loaded, the motor coil will not burn. There are three options of rotation direction to choose from: CW, CCW and CW/CCW.
Note：
If you choose the rotation direction CW/CCW and apply load over rated torque, the rotation direction will automatically reverse.
