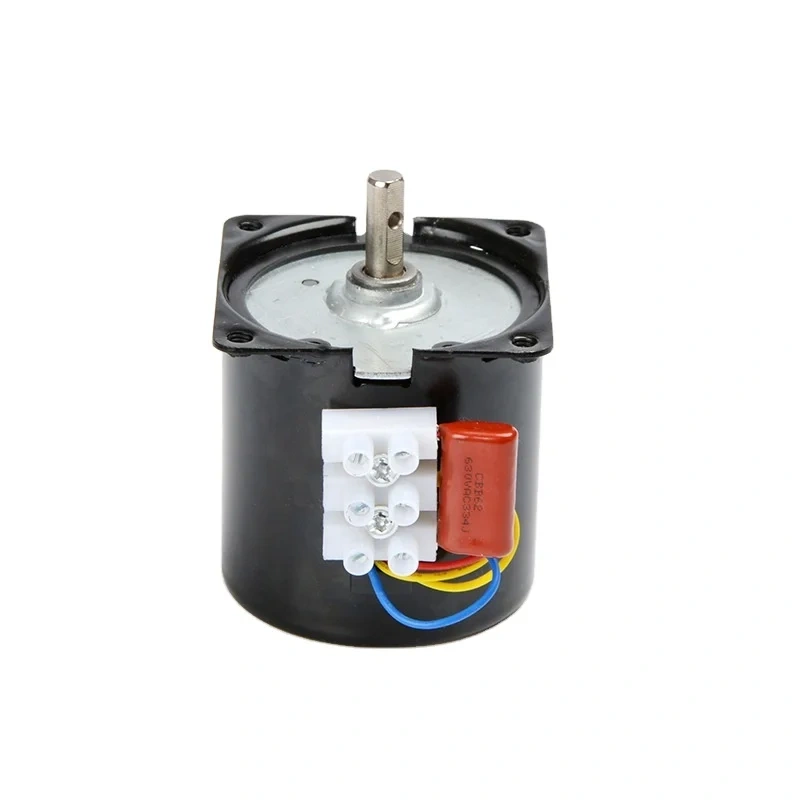

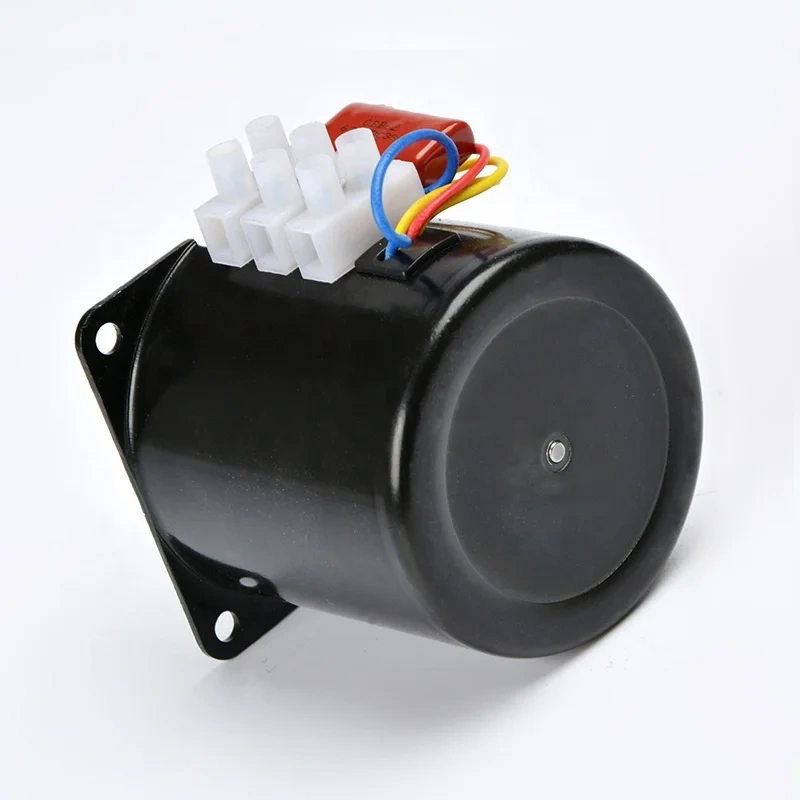

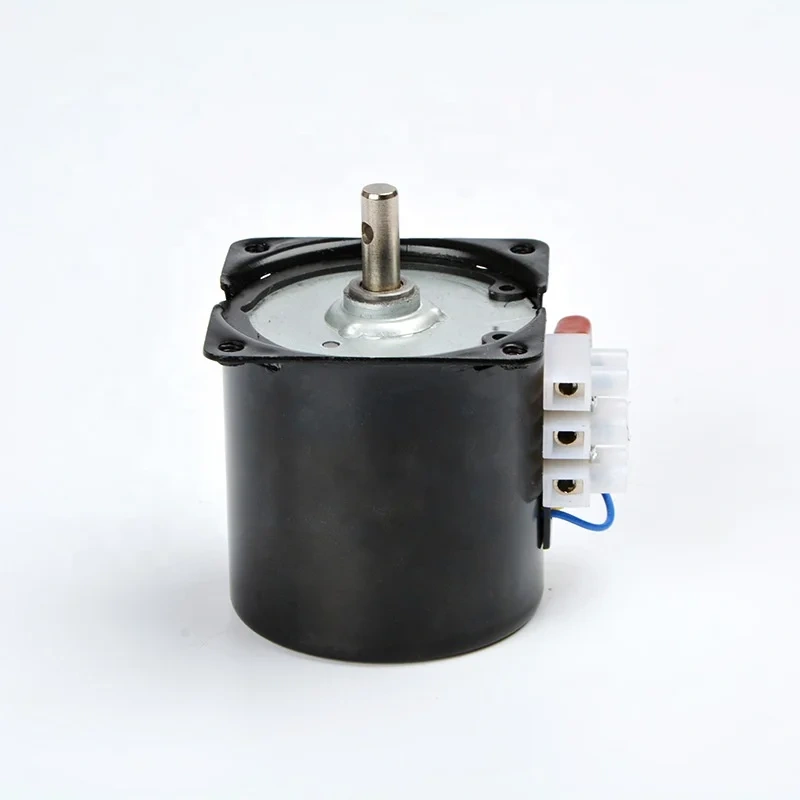

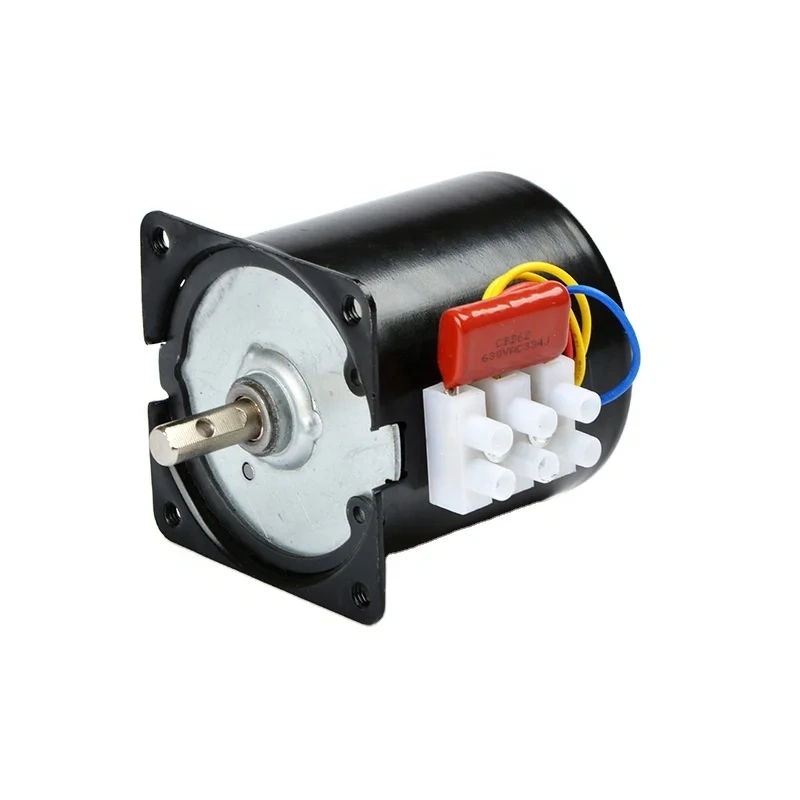

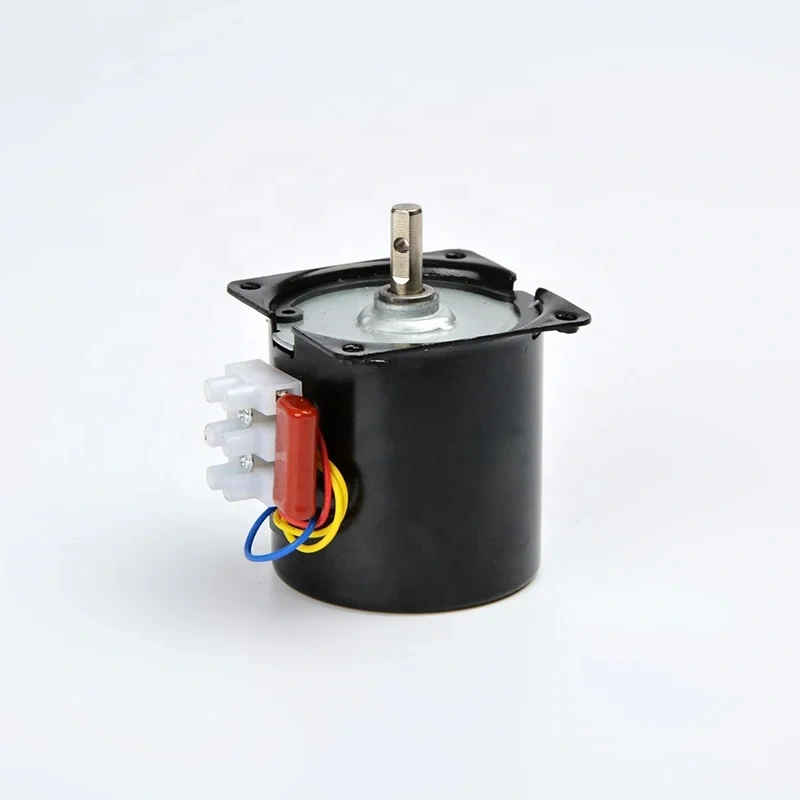

At rated frequency, the rotation speed is not affected by voltage. If overload or stall when loaded, the motor coil will not burn. Note： This motor is AC Synchronous motor. The rotation speed is only related with frequency.

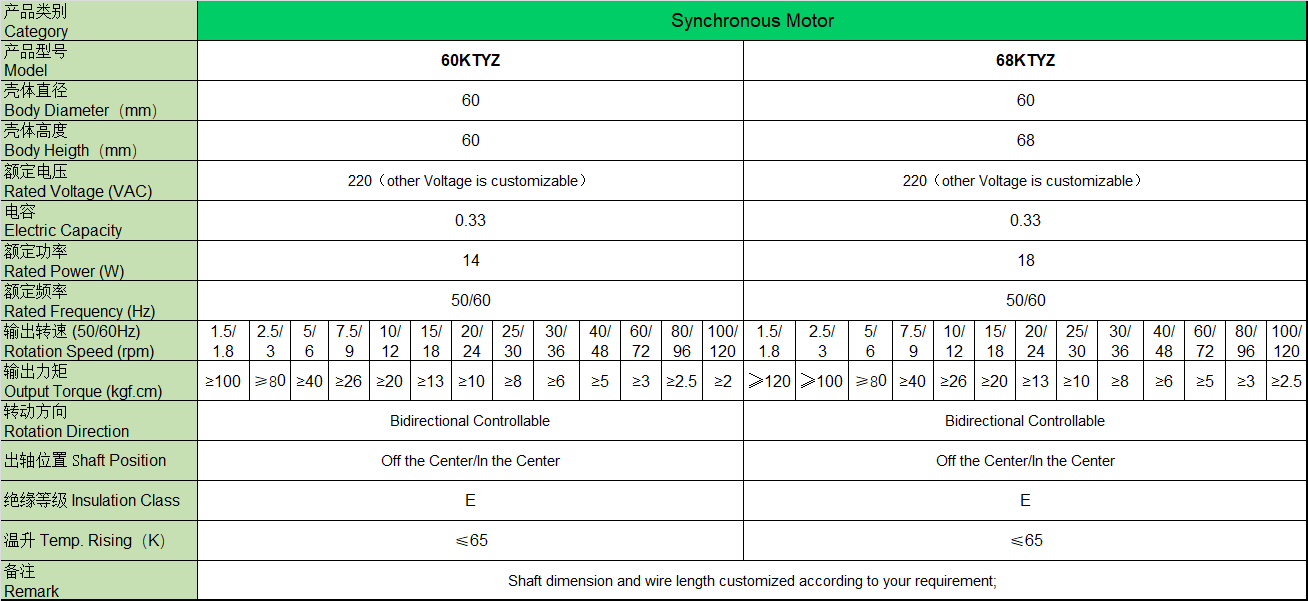

Please see the parameter table, for example you choose the rotation speed = 10 rpm. If your country's frequency is 50Hz, the rotation speed is 10 rpm. If your country's frequency is 60Hz, the rotation speed is 10*1.2= 12 rpm.

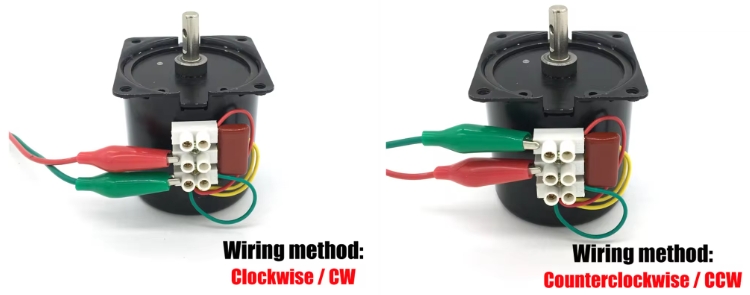

We can customize various shafts, speed, torque, wire, lead, etc. according to your requirements. Please send an inquiry or TM to tell us. Please leave a message to tell us your choice of voltage, rotation direction (CW, CCW and CW/CCW) to get quick quotation.
For example： 220V 50Hz, 10RPM, Torque＞26kgf.cm, wire length=50cm
